Banshee Aluminum Stem Bottom-Pivot (Close out-No longer in Production)

  • Sale
  • $25.00
  • Regular price $45.00


For the custom fabricator in mind.......

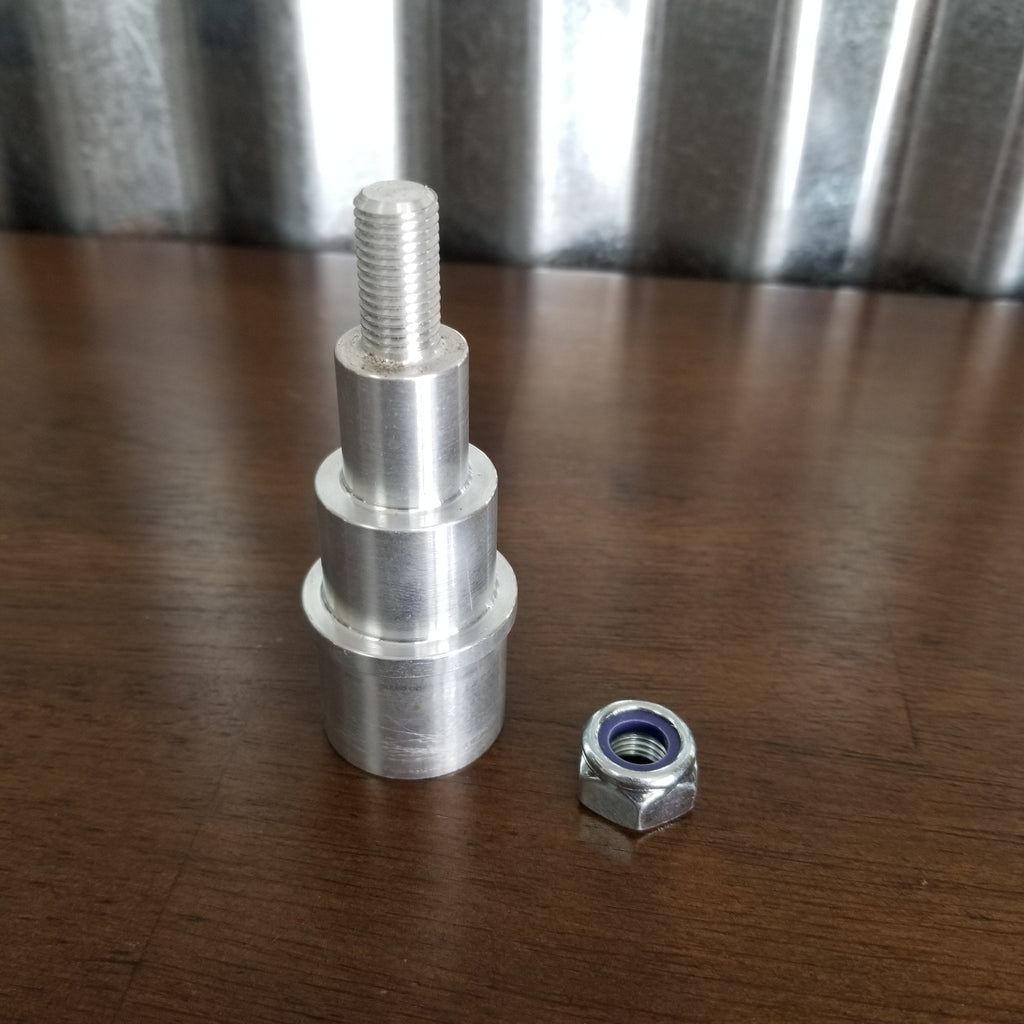

CNC Machined From 6061-T6 Aluminum.  These are made to the same specs as the factory steering stem pivot bottom.  It fits into the factory bearing and seal on the Yamaha Banshee Frame.

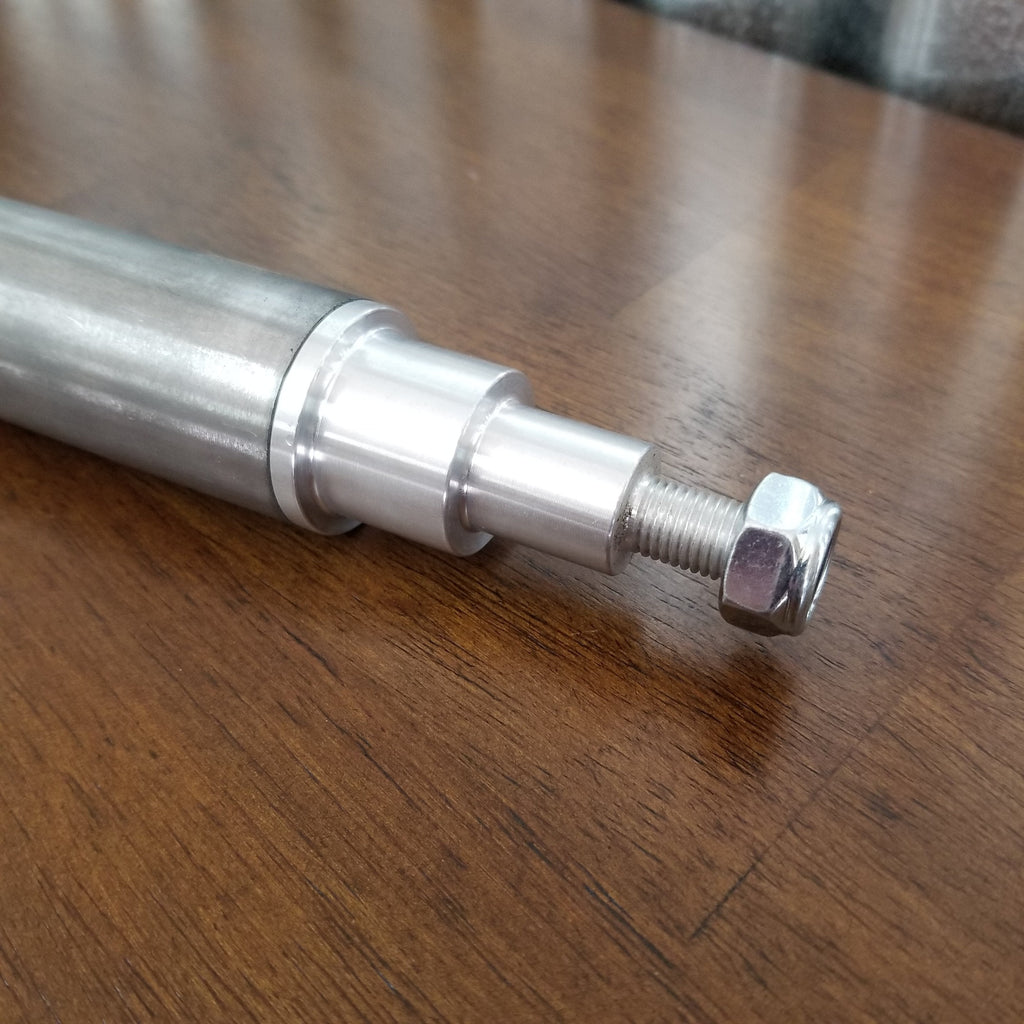

It is machined to slide into a 1.25 x .058 wall tubing (1.134 i.d.), but could be modified by the builder as needed.

This is similar to the stem bottom LSR uses on their XULW Drag Chassis as well.

Drill a hole through the tube and pivot and secure with a bolt/nut or by other means preferred by the builder.

These were a limited production and once they are gone we do not plan on running more.

Includes M10 x 1.25 Nylok Nut

Weight with nut: 3.4oz

Free Shipping in the continental US
